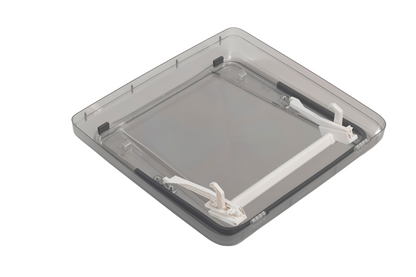

VisionStar M conversion kit - replacement dome with opening mechanism
VisionStar M conversion kit - replacement dome with opening mechanism
SKU:4903.52MW
Shipping within 3-5 working days
Couldn't load pickup availability

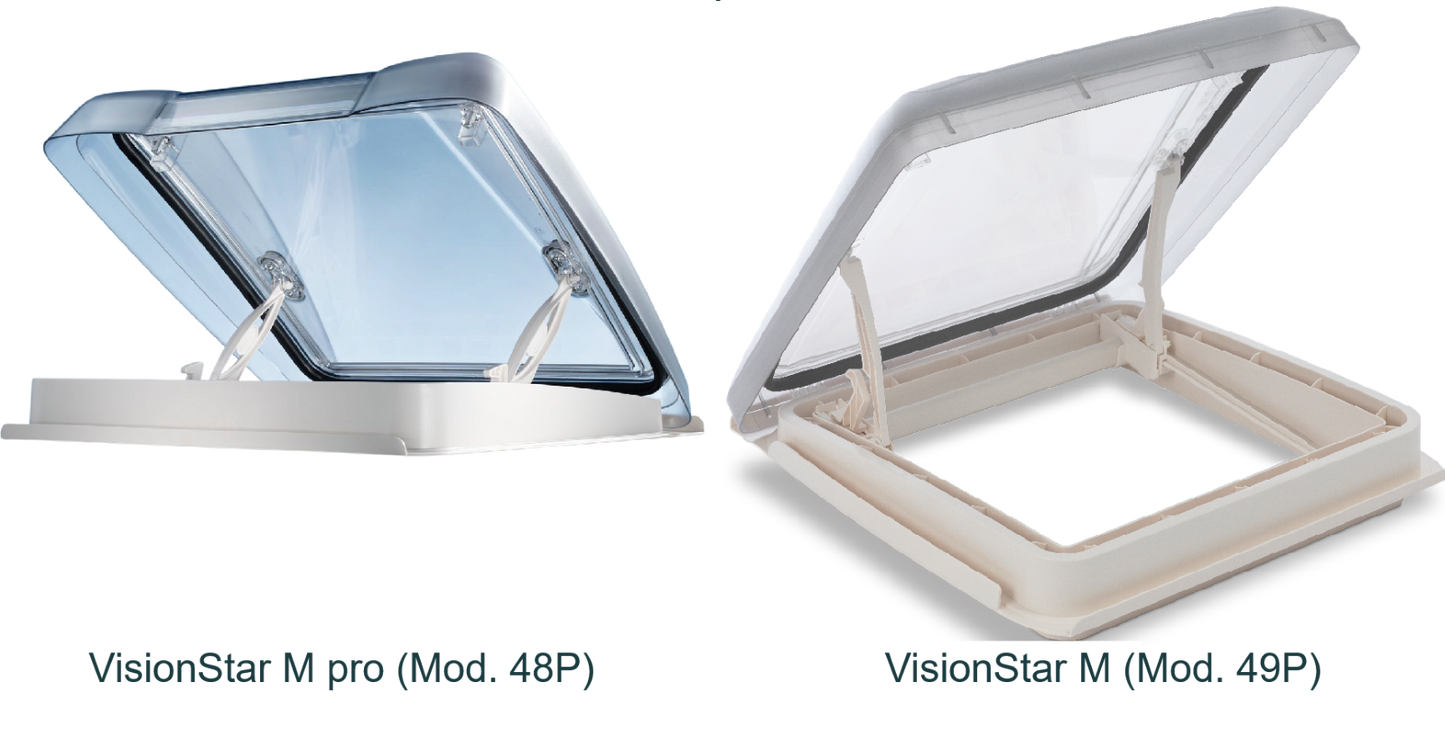

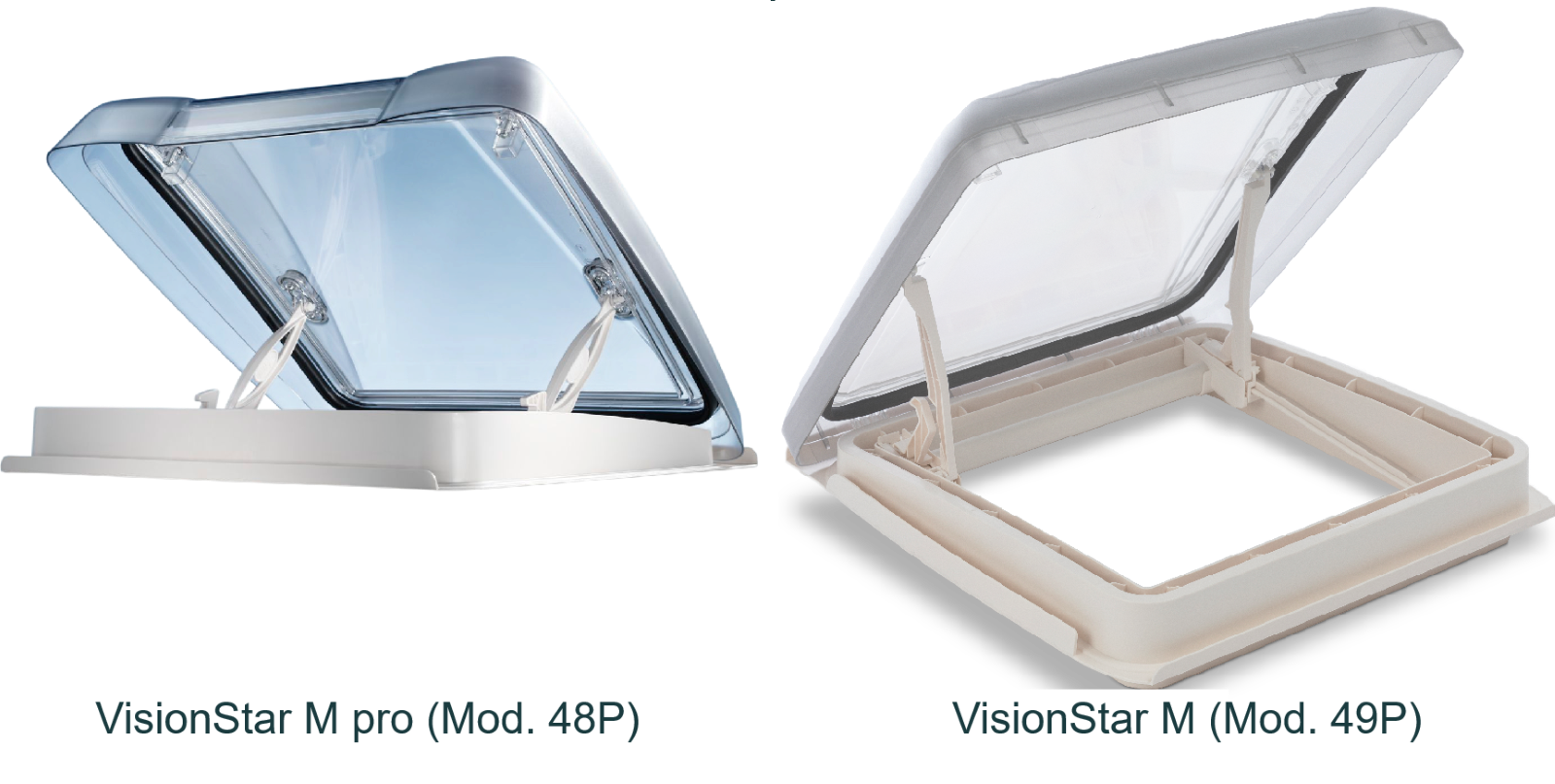

The conversion kit, consisting of a replacement dome and opening mechanism, allows the older rooflight model VisionStar M pro (48P) to be converted to the current successor model VisionStar M (49P) .
Since the replacement dome for the earlier VisionStar M pro (48) model is no longer in production, this kit offers an economical and sustainable solution: The existing frame is retained, while the canopy and opening mechanism are updated. A complete replacement of the rooflight is therefore unnecessary.
Characteristics
- Conversion kit for upgrading from VisionStar M pro model 48 to VisionStar M model 49
- Replacement of dome and opening mechanism while retaining the existing frame.
- Smoked glass rooflight made of UV-resistant, impact-resistant polycarbonate
- Double glazing for better insulation and condensation prevention.
- High UV protection thanks to tinted dome material

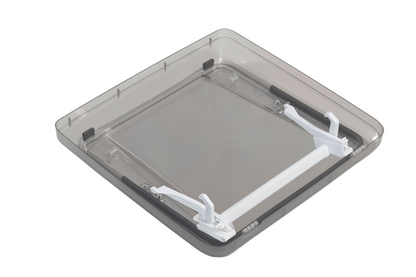

- Optionally with or without integrated continuous ventilation
- Perfectly suited for existing VisionStar M frames (400 x 400 mm)
- Approval: ECE R43-019651
Technical data
| Cutout dimensions | 400 x 400 mm |
|---|---|
| Dome size | 490 x 470 mm |

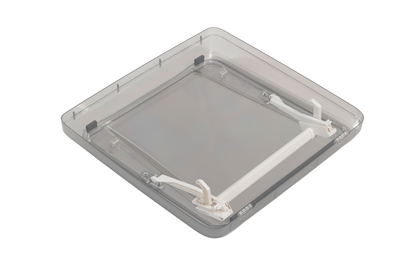

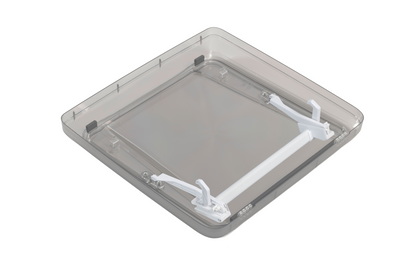

| Continuous ventilation | Up to 150 cm² |
| Height above roof | 80 mm |
Scope of delivery

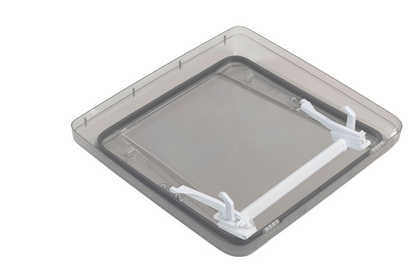

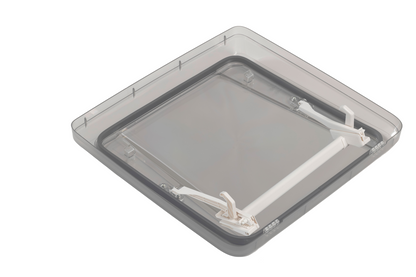

- Replacement dome for VisionStar M
- Opening mechanism for VisionStar M consisting of: locking sliders left & right, operating handle, cotter pin set
Installation instructions for replacement hood with opening mechanism VisionStar M
